Product description

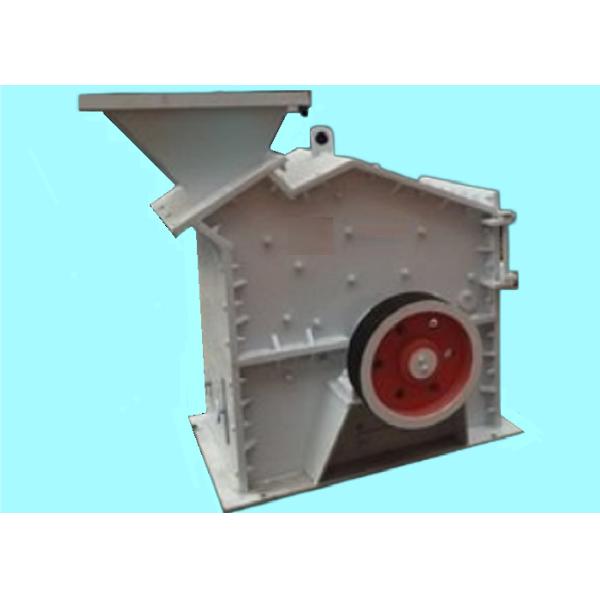

PFX1414 High efficiency fine crusher granite River pebble fine crusher high efficiency fine crusher price stone fine crus
1. Description
The new high-efficiency fine crusher (the third generation sand making machine) has a wide range of uses, and its performance has reached the international leading level. It is the most effective, practical and reliable gravel machine at present, especially suitable for making abrasives, refractories, cement, quartz sand, limestone, river pebbles (pebbles), steel sand, slag powder, copper ore, iron ore, gold ore, concrete aggregate The fine and medium crushing of various hard and brittle materials such as asphalt aggregate is an efficient and energy-saving gravel sand making equipment, which is 30% more energy-saving than the traditional fine crusher. It is an advanced fine crusher equipment in the world at present.
It is applicable to industrial departments such as metallurgy, mining, cement, chemical industry, refractories and ceramics, as well as highway construction, water conservancy engineering, building gravel, machine-made sand processing and other fields.
It is suitable for medium and fine crushing of various soft and medium ores, such as limestone, feldspar, calcite, talc, barite, rare earth, clay, kaolin, dolomite, kaolin, gypsum, graphite, etc.
2. Technical Parameters
| Model | Rotor Diameter/mm | Rotor Width/mm | Max Feeding Size/mm | Finished particle size/mm | Capacity (t/h) | Power/Kw | Overall SizeL*W*H/mm |
| PFX8080 | 800 | 800 | ≤500 | 90%≤25 | 50-60 | 55 | 1560x1710x1700 |
| PFX1010 | 1000 | 1000 | ≤800 | 90%≤25 | 70-90 | 90 | 1840x2140x2070 |
| PFX1012 | 1000 | 1200 | ≤1000 | 90%≤35 | 80-120 | 132 | 1840x2340x2270 |
| PFX1212 | 1200 | 1200 | ≤1100 | 90%≤35 | 130-160 | 160 | 2264x2640x2380 |
| PFX1215 | 1200 | 1200 | ≤1100 | 90%≤45 | 150-190 | 200 | 2360x3240x2890 |
| PFX1414 | 1400 | 1400 | ≤1200 | 90%≤45 | 190-210 | 220 | 2480x3120x2930 |
| PFX1616 | 1600 | 1600 | ≤1400 | 90%≤55 | 250-300 | 250 | 2640x3014x3572 |
| PFX1818 | 1800 | 1800 | ≤1600 | 90%≤65 | 300-400 | 280 | 2890x3450x3190 |
3. Product advantages
1. High crushing efficiency, with fine crushing and coarse grinding functions.
2. The utility model has the advantages of simple structure, convenient installation and maintenance and low operation cost.
3. The ability to pass through non broken materials is strong, and it is less affected by the moisture content of materials, which can reach 8%.
4. The product has excellent particle type, cube shape and very low needle flake content. It is suitable for aggregate shaping, artificial sand making and high-grade highway specification stone making; High bulk density and minimal iron pollution.
5. The working noise is lower than 75 dB (DB level), with less dust pollution.
6. The counterweight wheel is added on the basis of the old sander, which saves electric energy and increases kinetic energy. The production efficiency has been greatly improved
7. The maintenance observation door is opened at the rear of the third generation sand making machine, which is more conducive to the maintenance and observation of the operation of the equipment. The castor regulating device is added to facilitate the adjustment of the discharge particle size of sand. The design is more humanized
4. Working principle
During operation, driven by the motor, the rotor of the new high-efficiency fine crusher (the third generation sand making machine) rotates at high speed, the materials enter the first crushing chamber for crushing, impact and crush with the plate hammer on the rotor, then enter the second fine crushing chamber for crushing, and finally discharge from the discharge port.

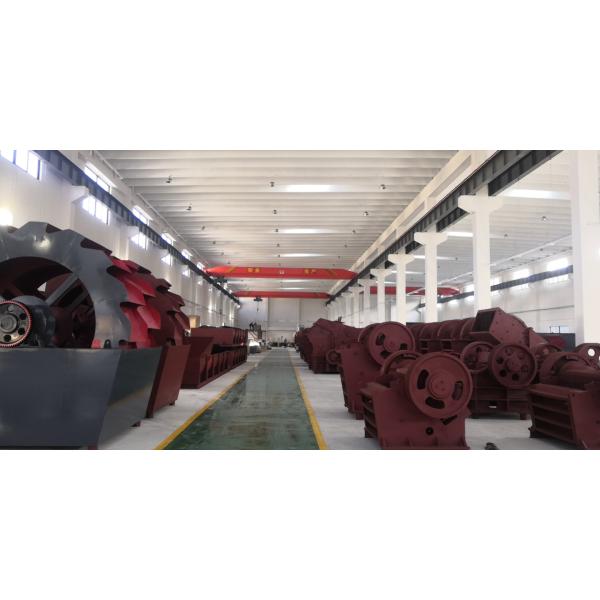

Factory manufacturing and transport
